Collegamento circolare impermeabile

M23 Series Waterproof Circular Connector with 30A Current Rating 100% Dustproof and UL94 V-0 Flame Resistance

Tutte le categorie

Collegamento circolare impermeabile

Fermaglio maschio impermeabile

Presa di alimentazione impermeabile

connettore di cavo impermeabile

Collegamento di segnale impermeabile

Collegamento di dati impermeabile

Connettore di montaggio del pannello impermeabile

Collegamento di corrente

Contattici

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contatto ora

M23 Series Waterproof Circular Connector with 30A Current Rating 100% Dustproof and UL94 V-0 Flame Resistance

Marchio:	Cablein
MOQ:	100pcs
prezzo:	The price ranges from $1 to $4 USD per pieces
Dettagli dell' imballaggio:	Cartone di esportazione di alta qualità
Condizioni di pagamento:	T/T, Unione Occidentale

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Shenzhen China

Certificazione:

CE, ROHS, TUV , ETL

Valutazione attuale:

30a

Polvere:

Dust a prova di polvere al 100%

Livello di protezione:

IP68

Resistenza all'isolamento:

≥1000 MΩ

Via Conenction:

Connessione rapida

Messa a terra:

Grounding standard

Tensione nominale:

450V

Valutazione della resistenza alla fiamma:

UL94 V-0

Capacità di alimentazione:

Output mensile: 10.000 set

Evidenziare:

30A Current Rating Waterproof Circular Connector

100% Dustproof M23 Series Connector

UL94 V-0 Flame Resistance Quick Push-Pull Connector

Descrizione di prodotto

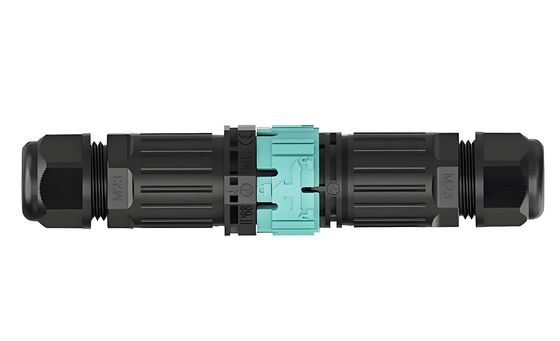

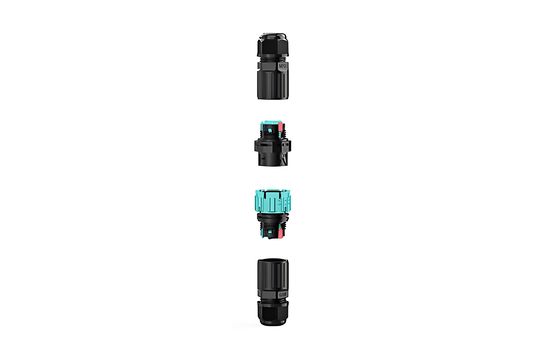

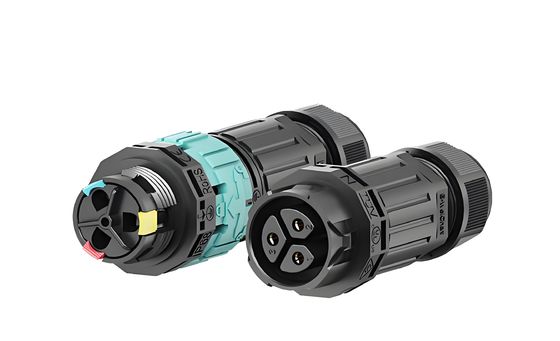

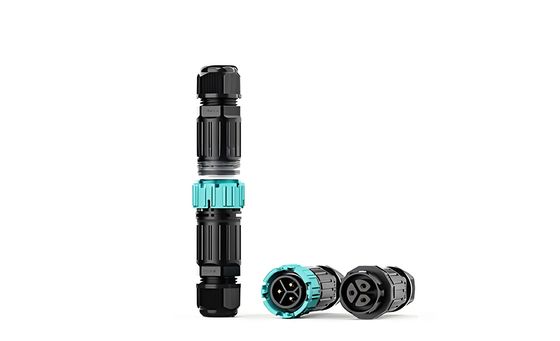

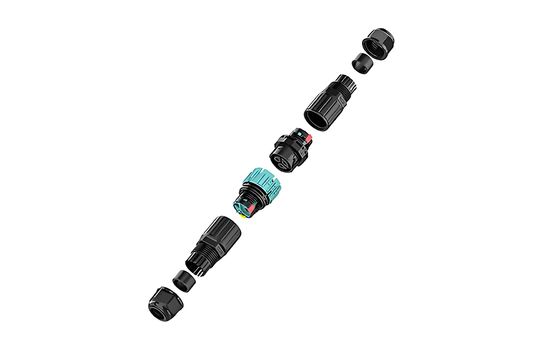

M23 Series Waterproof Connector, Quick Push-Pull Locking, Male & Female

The M23 Series Waterproof Connector features a quick push-pull locking mechanism for secure connections in demanding environments. Designed for industrial applications, it offers reliable performance with IP68 waterproof rating.

Key Specifications

Connection Type	Quick-Connect
Installation Type	Wire-to-Wire
Pin Configuration	3
Material	PA66
Applicable Wire Gauge	0.5mm²-2.5mm²
Waterproof Ring	5-7mm
Rating	IP68

Technical Parameters

Product Name	M23 Series Waterproof Connector, Quick Push-Pull Locking, Male & Female
Wiring Range	4/5P 0.5 - 2.5 mm² 2/3P 0.5 - 4mm²
Rated Current	2/3P 30A 4/5P 15A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-9mm 9-12mm

Product Advantages

Quick Push-Pull Locking: Secure mating with easy disconnection
IP68 Waterproof: Fully protected against water and dust ingress
Rugged Design: Built to withstand harsh industrial environments
Reliable Connection: Ensures stable electrical performance

Typical Applications

Outdoor Surveillance System Connection Solutions

LED Plant Growth Light Solution

Frequently Asked Questions

What is the IP rating of this connector?

IP68-rated, fully waterproof and dustproof.

How does the locking mechanism work?

Features quick push-pull locking for secure mating and easy disconnection.

Is it available in different pin configurations?

Yes, the M23 series offers various pin counts to meet different application needs.

What materials is the connector made from?

Constructed with robust metal shell and high-quality seals for durability.

Can it withstand harsh environments?

Yes, resistant to water, dust, vibration, and suitable for industrial use.

Are mating connectors included?

Sold as matched male and female pairs for complete connectivity.

Tag:

Collegamento circolare resistente all'acqua

Collegatori maschili e femminili

Connettori di cavo circolari
