Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

Marchio:	Cablein
MOQ:	100pcs
prezzo:	The price ranges from $1 to $4 USD per pieces
Dettagli dell' imballaggio:	Cartone di esportazione di alta qualità
Condizioni di pagamento:	T/T, Unione Occidentale

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

SHENZHEN CINA

Certificazione:

CE, ROHS, TUV , ETL

Grado IP:

IP68

Pin di contatto:

2 pin

Tipo di prodotto:

Collegamento circolare

Colore:

Nero

Parole chiave:

connettore del cavo di alimentazione

Vita mecnica:

≥1000 volte

Stile di accoppiamento:

Vite

Resistenza alla fiamma:

UL94 V-0

Capacità di alimentazione:

Output mensile: 10.000 set

Descrizione di prodotto

Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

Specifications

Installation Type: Wire-to-Wire

Connection Type: Screw Locking

Rating: IP68

Pin: 2

Waterproof Ring: 3.5-7mm 5-8mm 7-10mm

Applicable Wire Gauge: 0.5mm²-1.5mm²

Material: PA66

Datasheet

Parameter	Specification
Product Name	Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking
Wiring Range	0.5mm² - 1.5 mm²
Rated Current	17.5A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	3.5-7mm 5-8mm 7-10mm

Advantages

1. Ensures Vibration-Proof & Secure Connections
The screw-locking mechanism prevents loosening under stress, guaranteeing a stable and reliable connection in high-vibration environments like machinery and vehicles.
2. Delivers Ultimate IP68 Environmental Protection
Fully sealed against dust, dirt, and prolonged water submersion, this connector provides unwavering performance in harsh outdoor and industrial settings.
3. Simplifies Installation with a Straight-Through Design
The intuitive in-line design allows for quick, tool-free mating, significantly reducing installation time and effort for cable-to-cable connections.
4. Built for Durability with a Robust M16 Interface
Featuring a standardized M16 threaded design and high-grade materials, this connector resists corrosion, impact, and mechanical wear for long-term use.

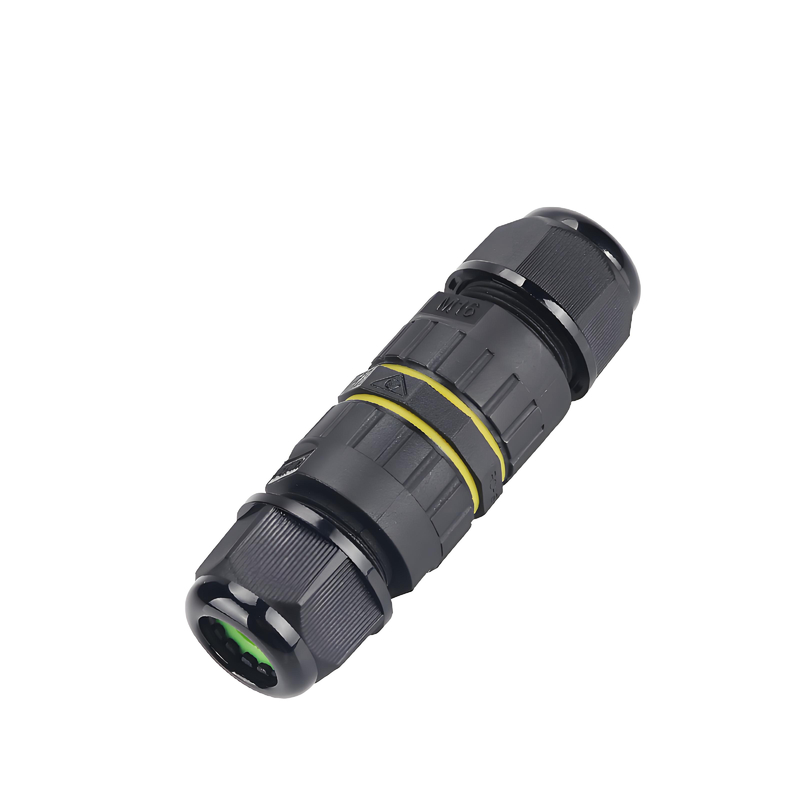

Product Images

FAQ

1. What is the IP68 rating suitable for?

The IP68 rating ensures complete protection against dust and prolonged immersion in water, making it ideal for outdoor, industrial, and automotive applications.

2. How does the screw-locking mechanism work?

It features a threaded coupling nut that, when hand-tightened, secures the connection against vibration and accidental disconnection.

3. Is this a cable-to-cable or panel-mounted connector?

This is a straight-through, in-line connector designed specifically for cable-to-cable connections.

Tag:
